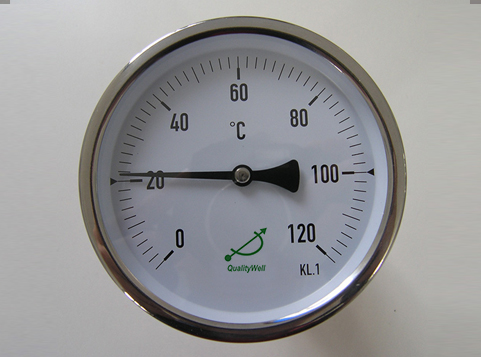

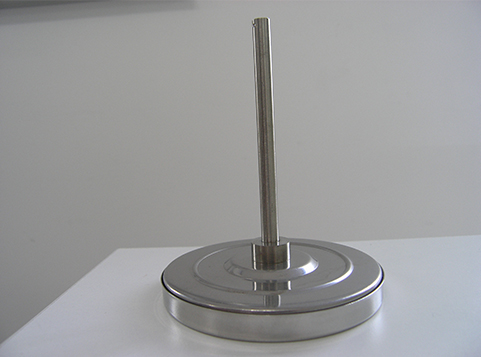

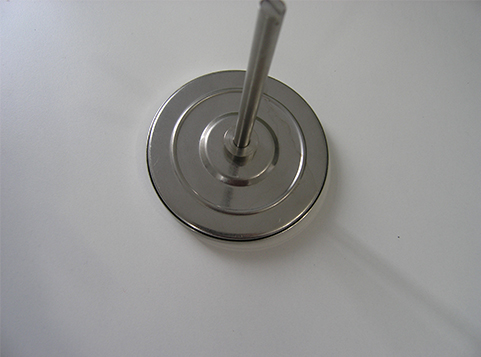

These series of thermometers are designed for installa- tion inpipes, vessels, plant and machinery.Stem and case are made of stainless steel 304.To allow fitting to the process, different insertion lengths and process connections are available.Thermowells are recommended for pressure, corrosive fluid or high velocity applications.
Product Details
| Model Number | EH series |
| Name | Hot water bimetal thermometer |
| Dial Size | 4" |
| Case | SS 304 stainless steel |
| Lens | Plastic |
| Bezel | Pressed |
| Pointer | Aluminum,black |
| Movement | Bi-metallic coil imported from US |
| Stem OD | 8mm |
| Stem Length | Customized |
| Connection | Back Connection |
| Thread | No thread,but φ18X8 round disk |
| Accuracy | +/-1C |
| Range | From 0/120 C (customized) |
| Packaging | Shakeproof |
| Enclosure Rating | IP55 |
| Standard | ASME B40.200-2008, EN13190:2001 |
| Field | Pipeline,surface,industrial,oil,chemical,power station,marine,etc. |
| Drawing |
|
