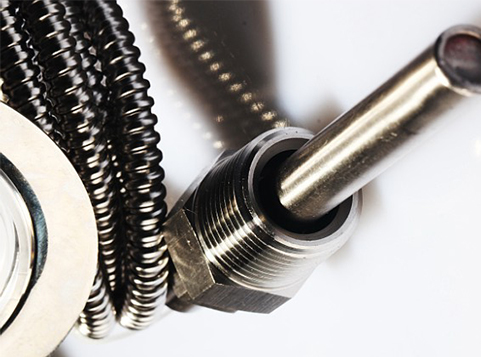

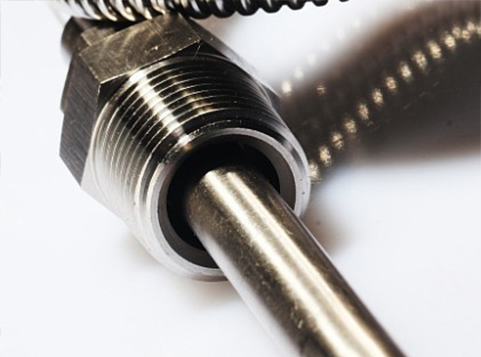

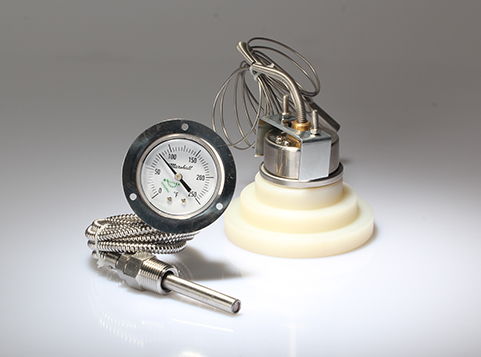

These series of thermometers are designed for remote reading of the temperature, with capillary tubing between case and sending bulb. The entire thermometer is filled with an inert nitrogen gas offering fast response. The material is all Stainless Steel 304.
Product Details
| Model Number | 200RF21121 |
| Name | Remote Reading Thermometer, Capillary Thermometer |
| Dial Size | 2"(50mm) |
| Case | SS304 |
| Lens | PC cover |
| Bezel | SS 304,crimped |
| Pointer | Aluminum |
| Stem OD | 7mm |
| Stem Length | 140mm |
| Capillary length | 1000mm(Customized) |
| Connection | Back connection, Top flange |
| Thread | 1/2"NPT |
| Accuracy | ±2% |
| Range | -20-160°C&°F(customized) |
| Oil filled | No |
| Packaging | Shakeproof |
| Enclosure Rating | IP55 |
| Field | The remote reading,Shockproof requirements,refrigeration plant,marine machinery,etc. |

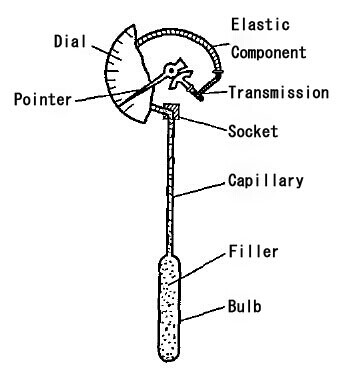

| Structure Chart |
|
