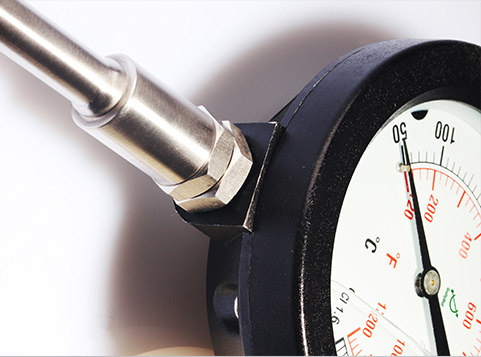

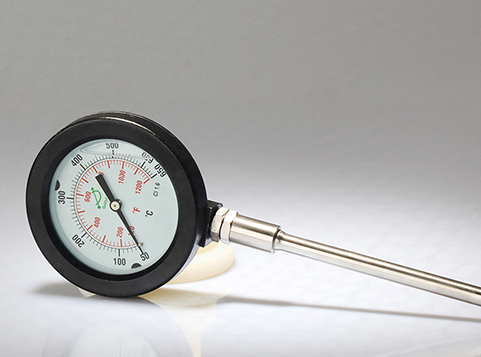

These series of thermometers are designed for remote reading of the temperature, with capillary tubing between case and sending bulb. The entire thermometer is filled with an inert nitrogen gas offering fast response. The material is all Stainless Steel 304.
Product Details
| Model Number | ET400-2 |
| Name | Remote Reading Thermometer, Capillary Thermometer |
| Dial Size | 4" |
| Case | Cast aluminium |
| Lens | Glass |
| Bezel | Cast aluminium,bayonet |
| Pointer | Aluminum |
| Stem OD | 12mm |
| Stem Length | 200mm(Customized) |
| Connection | Bottom connection |
| Thread | 1/2"NPT |
| Accuracy | ±2% |
| Range | 0-650°C&°F(customized) |
| Oil filled | Silicone oil |
| Packaging | Shakeproof |
| Enclosure Rating | IP55 |
| Field | The remote reading,Shockproof requirements,refrigeration plant,marine machinery,etc. |

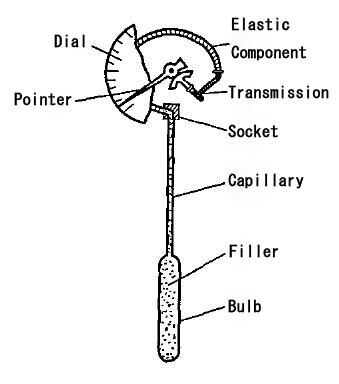

| Structure Chart |
|
