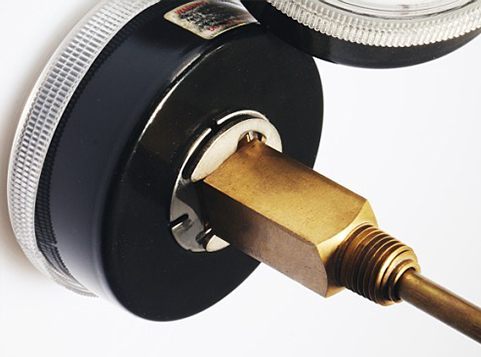

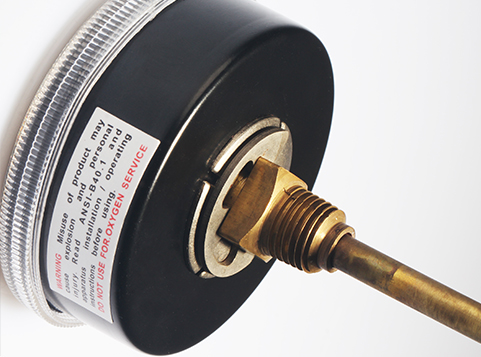

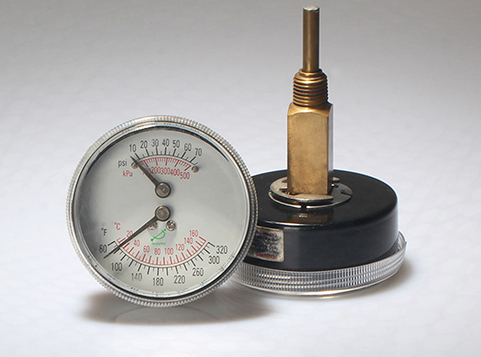

The tridicators can measure the pressure in PSI and KPA, the altitude in feet of H2O and the temperature in C °and ° F. The available dial sizes are 63mm and 80mm. Equipped with relief set point indicator. Thread, probe length and range can be customized. We can manufacture them full stainless steel or with black steel case and brass connection.
Product Details
Model Number | WHT-2B |
Name | 2.5” Back Tridicator with extention, Boiler Gauge |
Connection | Back Connection |
Bezel | Screw in Plastic Lens |
Case | Black steel case, |
Thread | 1/4”NPT or customized |
Size | 71.5mm |
Stem | 2” or customized , Material : Brass |
Range | -20-120C &0-160psi or Customized |
Accuracy | Temp: ±2% , Pressure: ±3-2-3% |
Lens | Plastic |
Packaging | Shakeproof |
Enclosure Rating | IP55 |
Field | industrial pipe,heating equipment,boiler,etc. |

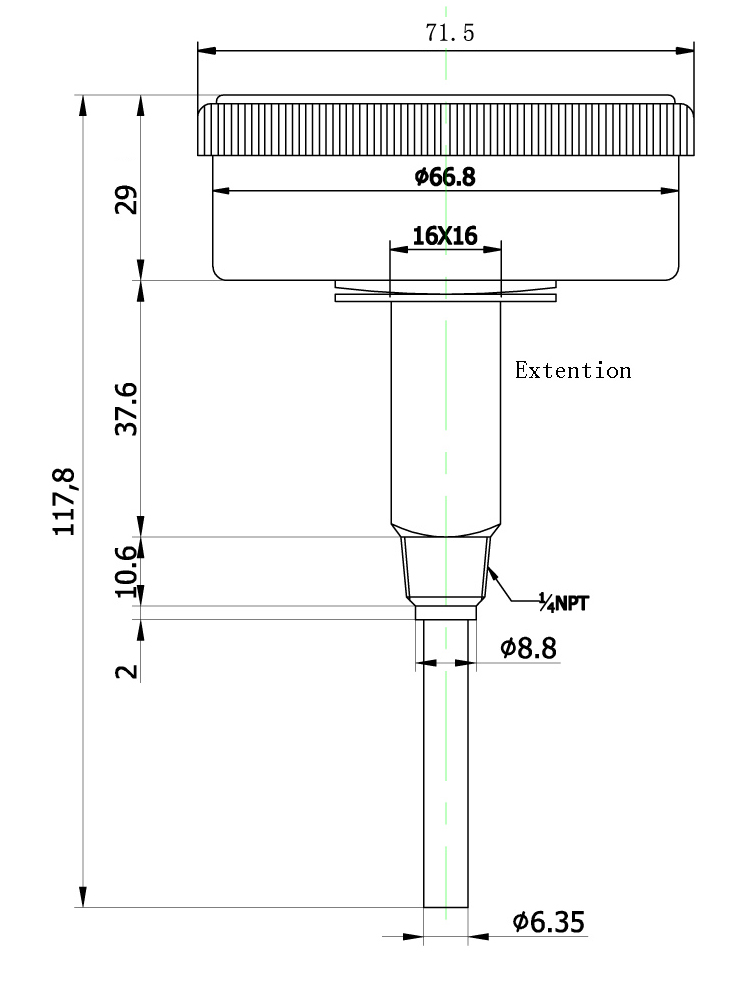

Drawing |
